SPECIFICATIONS

AC Voltage: 1.9999V/19.999V/199.99V/750.0V

Amplitude: 0.1-3.0 Vpp

Band Width: 100-349MHz

Battery Included: No

Brand Name: FNIRSI

Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF/9.999mF/99.99mF

Continuity: Supported

Coupling: AC/DC

Cursor Measurement: Supported

DC Voltage: 1.9999V/19.999V/199.99V/1000V

DC/AC Current: 19.999mA/199.99mA/1.9999A/9.999A

DDS Channel: 1CH

DIY Supplies: Electrical

Digital Channels: 2

Diode: Supported

Display Mode: Dot, Vector, Color Temp

Display Size: 3.0 - 4.9 Inches

Duty cycle: 0-100%

Frequency: 0-10 MHz

High-concerned chemical: None

IS Battery Demountable: Yes

Input Impedance: 1MΩ

Math Operations: 11 Basic Ops + FFT

Max Input Voltage: 800V (x10 Probe)

Memory Depth: 10K, 100K, 1M

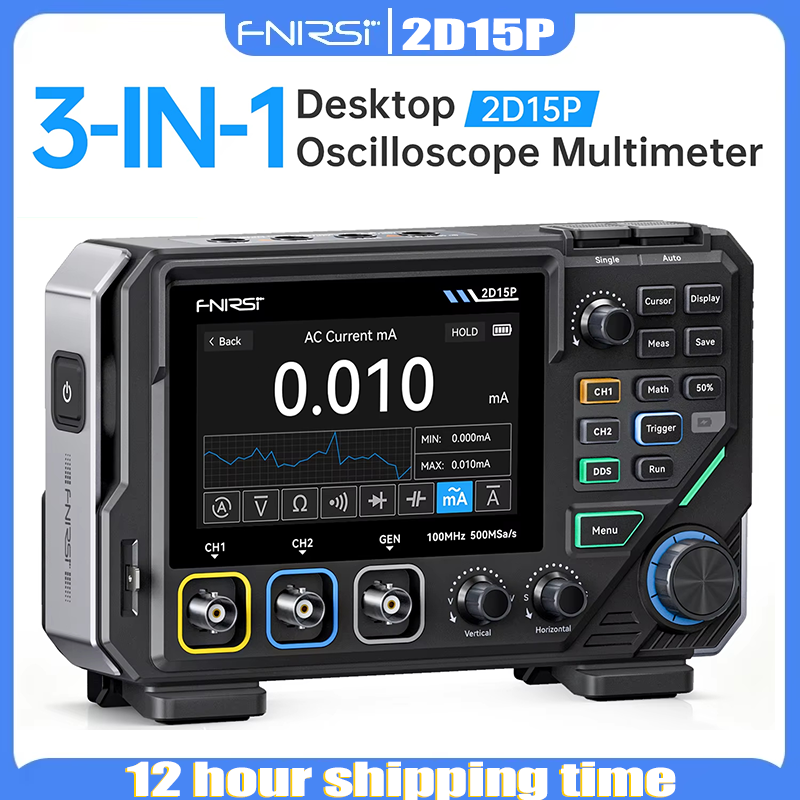

Model Number: 2D15P

Origin: Mainland China

Persistence: min/2s/5s/10s/20s/50s/infinity

Resistance: 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ/1.9999KΩ/199.99Ω

Timebase Range: 5ns~50s

Trigger Mode: Auto, Normal, Single

Trigger Type: Rising, Falling, Both Edges

Vertical Sensitivity: 10mV~10V/div

Waveform Capture: Supported

Waveform Export: Supported
